Home server & Docker services setup

Overview

The primary goals of this setup are:

• Scalability & security
• Self-sufficiency
• Efficient container management
• Automation & AI integration

This project highlights my network and server administration skills, DevOps mindset, and ability to integrate diverse technologies into a cohesive, reliable system.

Hardware

My home network setup is built on a 3-server setup: The border router runs OPNsense and provides DNS, DHCP, and mail services to the LAN. The other two servers run Ubuntu with Docker Compose managing containerized services.

Primary server

• Ubuntu server running Docker compose to manage containerized services
• Provides core network services
• Hardware: Beelink SER5 5560U Mini PC
  • CPU: AMD Ryzen™ 5560U
  • GPU: Integrated Radeon Vega 7
  • RAM: 48GB
  • Drives:
    • 500GB internal NVMe – host OS and supplemental storage
    • 256GB internal SDD – container data storage
    • 4TB external HDD – media/file server storage
    • 8TB external HDD – centralized backup storage

Secondary server

• Ubuntu server running Docker compose to manage containerized services
• Provides supplemental services and hosts personal websites
• Hardware: Beelink MINI S12 Pro
  • CPU: Intel® N100
  • GPU: Integrated Intel® UHD
  • RAM: 16GB
  • Drives:
    • 500GB internal SATA3 SSD – host OS and general storage
    • 2TB external SSD – primary media and file storage

Border router

• OPNsense
• Provides routing, firewall, physical separation of IoT network, DNS, DHCP, and SMTP services for LAN
• Hardware: Topton 4x i226-V 2.5Gbps micro firewall
  • CPU: Intel® Celeron® J4125
  • GPU: Integrated Intel® UHD
  • RAM: 8GB
  • Drives:
    • 128GB internal NVMe – host OS

Docker services

These are the services (non-comprehensive) that are provided by Docker on the primary and secondary Linux servers.

Primary server

Smart home & automation

• Home Assistant – used to manage smart home, provide entities to Node-RED with which it can interact, and provide UI for interacting with smart home devices
• Node-RED – powers event-driven smart home automation
• EMQX – MQTT broker used to communicate with Zigbee devices via Zigbee2MQTT and as messaging queue for Node-RED automations
• Zigbee2MQTT – used to bridge Zigbee devices with MQTT for integration into Home Assistant
• Z-Wave JS UI – integrates Z-Wave devices into Home Assistant
• ESPHome – allows easy programming of ESP32 devices and greatly simplifies integration with Home Assistant
• eufy-security-ws – used to integrate Eufy Security cameras into Home Assistant for event notifications and camera images
• MediaMTX – provides interface to Eufy Security cameras for streaming live video

AI & computer vision

• YOLO API (trash can detection) – provides API to YOLO instance that detects trash cans in security camera images
• YOLO API (object detection) – provides API to YOLO instance that detects objects in security camera images to verify detections made by the security system’s built-in AI
• Ultralytics YOLO11 – deep learning model providing fast and accurate real-time object detection and image segmentation
• Piper – locally-hosted text-to-speech (TTS) service used for audible announcements on smart speakers

Monitoring

• Telegraf – scrapes data from Ubuntu host and other services and stores data in InfluxDB buckets for later processing/graphing with Grafana

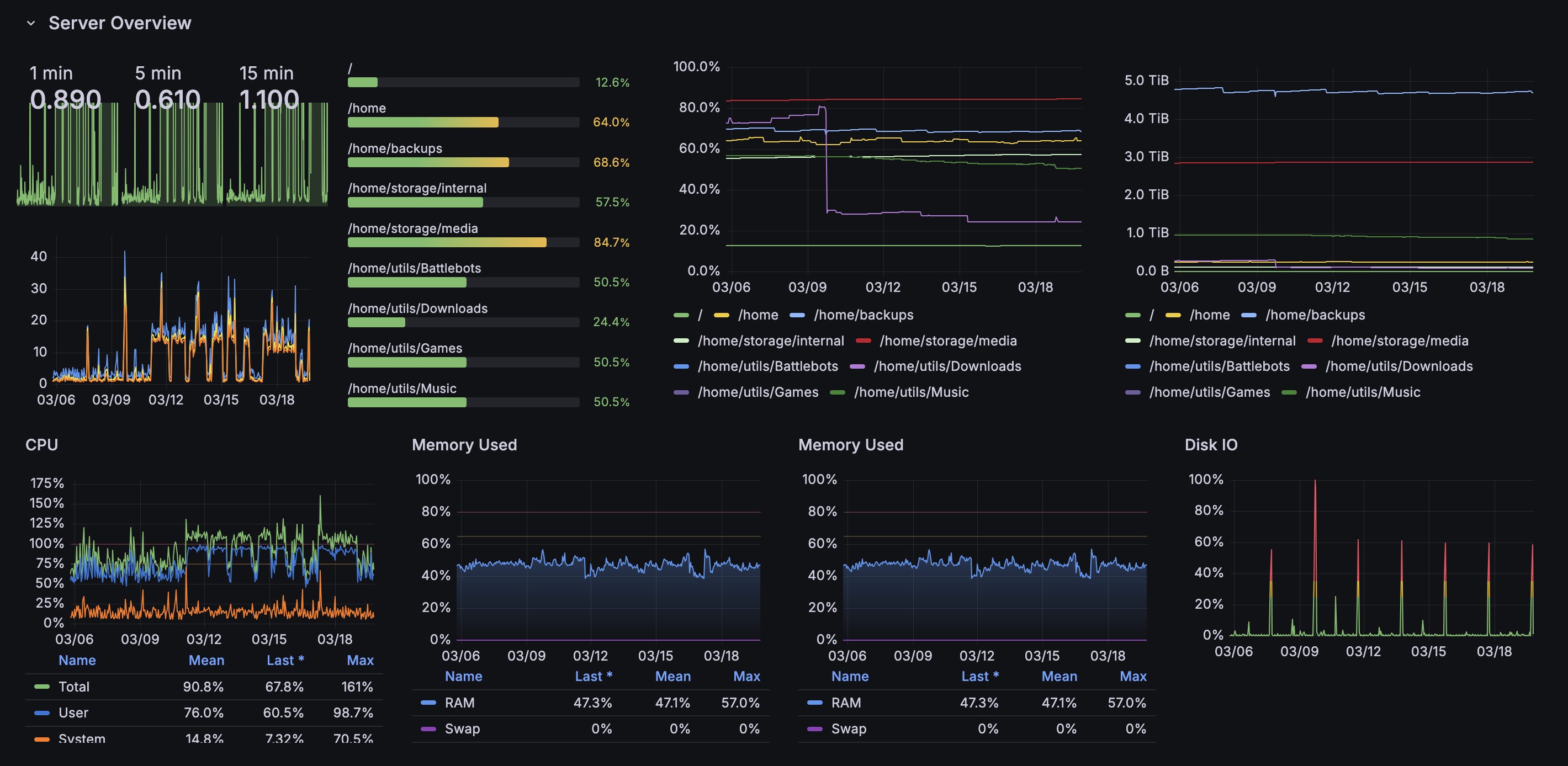

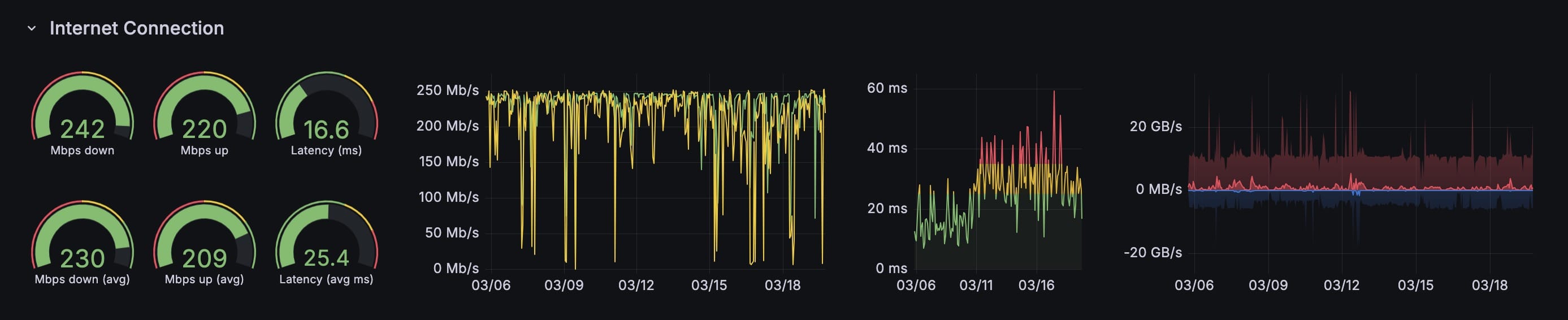

• Grafana – provides dashboard for viewing graphed data from InfluxDB and MariaDB databases
• Scrutiny – provides web UI for S.M.A.R.T. hard drive monitoring tool as well as email notifications when an issue has been detected

Networking & security

• CloudFlare Tunnel – provides selective public access to services behind CG-NAT and firewall
• fail2ban – bans abusive IP addresses based on log entries from a number of services
• Authelia – provides authentication for web-based services that do not have their own built-in authentication (authenticates against LDAP backend)
• NGINX – web server used behind Traefik reverse proxy for CDN and core web server functionality in development projects
• Acme.sh – automatically renews SSL certificates with Let’s Encrypt

Databases & caching

• Redis – provides object storage to other containers for caching and session management
• MongoDB – used for services requiring NoSQL storage
• MariaDB – used for services requiring SQL-based relational database storage
• InfluxDB – stores Home Assistant entity history as well as Telegraf data for processing and graphing in Grafana
• PostgreSQL – used for services requiring Postgres-specific relational database storage
• phpMyAdmin – provides web UI for managing MariaDB/MySQL

Media & file management

• Jellyfin – provides locally-hosted media server (think Netflix but local) for streaming movies and TV shows, listening to music, reading books, and reading comic books
• Jellysearch – provides fast full-text search for Jellyfin by proxying search queries from Jellyfin
  • uses dedicated instance of Meilisearch
• FileFlows – distributed, automated conversion of media files into a standardized format for ingestion into Jellyfin
• Samba – shares files on server with Mac/Windows/Linux clients using CIFS protocol
• Avahi – provides ZeroConf/mDNS for Samba server so shares show up automatically in GUI clients

Backup & system maintenance

• Kopia – network-connected backup system providing centralized backups to multiple servers and user devices on the LAN
• Diun – sends emails when a Docker image update has been detected
• dockcheck-web – web UI to see which Docker images have updates available

Productivity & self-hosting

• NextCloud – provides web-based file access (think Google Drive), client file sync (think Dropbox), calendar/tasks/contacts sync, and OpenID Connect (OIDC) services for SSO (authenticates against LDAP backend)
  • uses centralized MariaDB container instance
• Collabora Online – provides web-based document editing to NextCloud (similar to Microsoft Office 365/Google Docs)
• Light LDAP (LLDAP) – provides single source of truth for user identity and authentication for other containers
• Outline – self-hosted tool for managing notes and projects (think Microsoft Loop or Notion)
  • uses dedicated Redis and Postgres containers for isolation and security
• Bookstack – self-hosted tool for managing notes and projects similar to Outline (potentially deprecating Bookstack and switching); currently used to document network setup as well as household management in the event of my death (e.g., location of water shut-offs, circuit breaker, items to remember when winterizing house, odd quirks about the house, etc.)

Secondary server

AI & computer vision

• Whisper ASR Box – web API interface for faster-whisper to transcribe audio using AI (e.g., creating subtitles for movies without subs)

Monitoring

• Telegraf – scrapes data from Ubuntu host and other services and stores data in InfluxDB buckets for later processing/graphing with Grafana
• Scrutiny – provides web UI for S.M.A.R.T. hard drive monitoring tool as well as email notifications when an issue has been detected

Databases & caching

• Redis – provides object storage to other containers for caching and session management
• MariaDB – used for services requiring SQL-based relational database storage
• PostgreSQL – used for services requiring Postgres-specific relational database storage

Backup & system maintenance

• Kopia – network-connected backup system providing centralized backups to multiple servers and user devices on the LAN
• Diun – sends emails when a Docker image update has been detected
• dockcheck-web – web UI to see which Docker images have updates available

Media & file management

• Samba – shares files on server with Mac/Windows/Linux clients using CIFS protocol
• Avahi – provides ZeroConf/mDNS for Samba server so shares show up automatically in GUI clients
• Jellystat – provides statistics on Jellyfin server usage
  • uses dedicated PostgreSQL container instance for isolation and security
• Bazarr – downloads subtitles for movies/shows missing subtitles; also utilizes Whisper web service to transcribe audio using AI

Productivity & self-hosting

• Vaultwarden – password manager; open source implementation of Bitwarden server
• This website – this very website is hosted on my secondary server
• Photography website – WordPress site running WooCommerce
  • uses dedicated Mariadb container instance for isolation and security
• Mealie – self-hosted recipe management
• OwnTone – daapd server (iTunes media server) allowing Apple’s Music app to access Jellyfin music natively
• Plausible – self-hosted website analytics that’s watching you right now
  • uses dedicated PostgreSQL container instance for isolation and security
• Github actions API – small API I developed to accept incoming webhooks from Github actions to perform deployments locally
